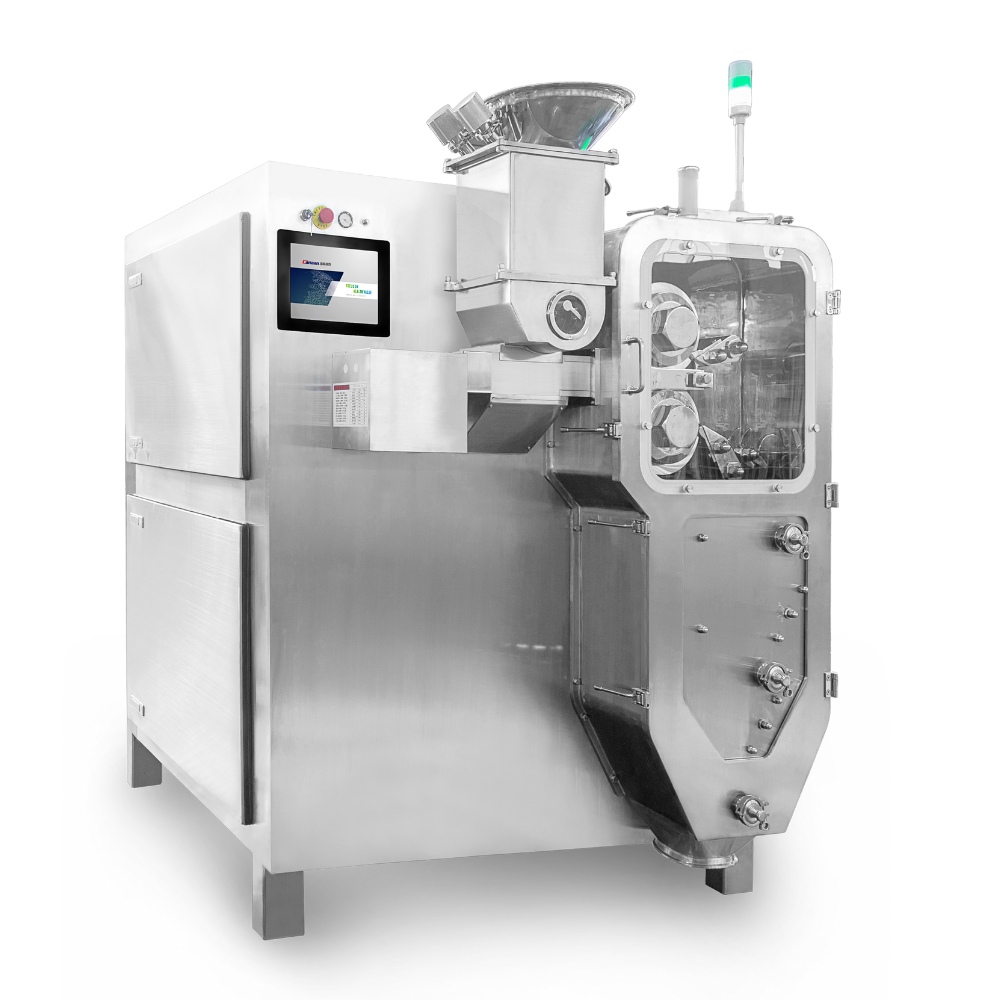

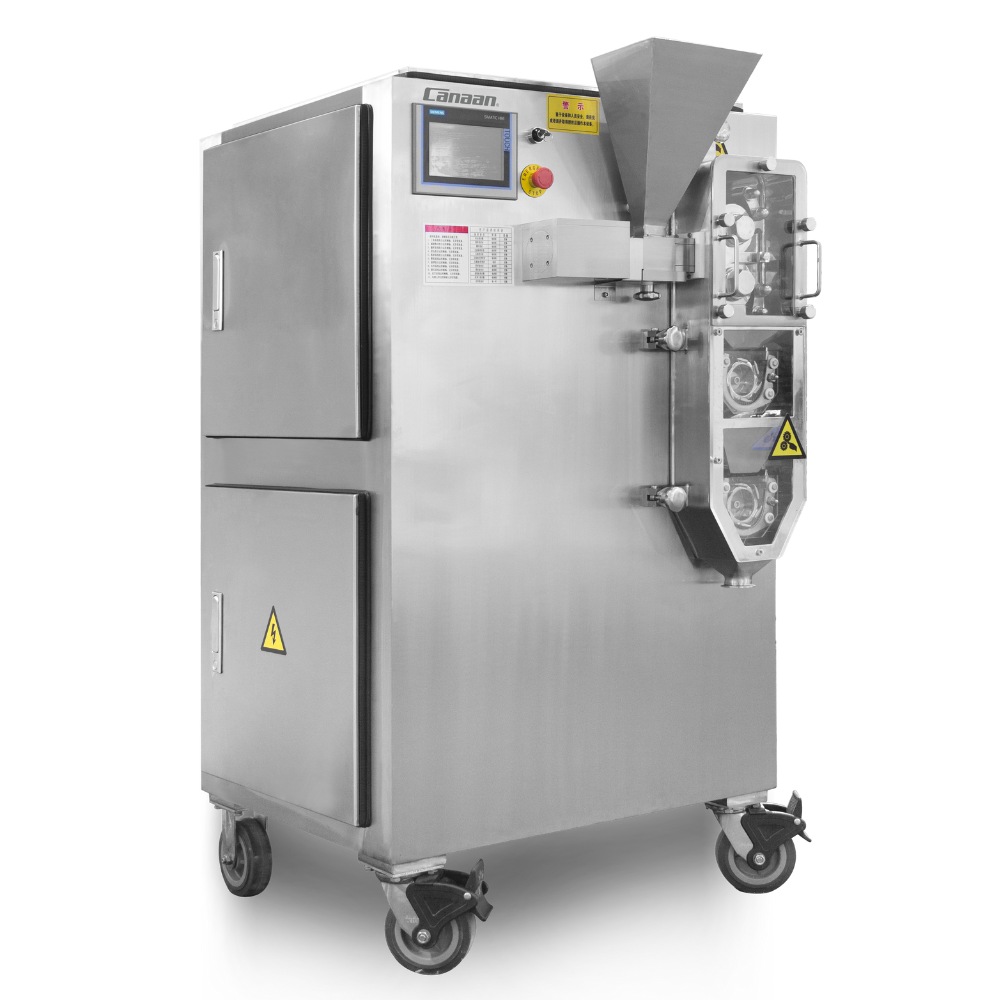

After mixing, dry material is charged to top receiving port by specific charger by vacuum or lifter, and then transferred to pressure chamber by conveyer screw(OPTION item for Vacuum charging or lifter). Two high pressure rollers extrude against material to form extreme high density slice, which goes through cutting system and 2 level mill systems, becomes uniform size granules, and then dry granulating process is finished. Roller compactor machine directly produces granules from powder without intermediate or additive, granules are uniform sized and bulk density obviously increased. This machine is material and power efficient, final product appearance and flowability is good for easy storage and transfer. Material compress time is short; during the whole system material temperature is strictly controlled to protect active components, the process especially applies for thermosensitive and humidity sensitive products.
1.Follow the regulations of c GMP, PIC/S GMP, FDA.
2.Double screw feeding system, greatly improves density and yield.
3.Vacuum system for screw feeder.
4.All the parts contact with material can be disassembled completely and cleaned easily.
5.Casting extrusion box, prevent deformation under pressure and ensure roller working precision.
6.Both rollers have three-side adjustable scraper (USA Patented) .
|
Equipment model |
LGP150/50II |
|
Granules fineness |
10-80 mesh |
|
Feeding capacity |
1-100 kg/h (lactose) |
|
Roller pressure |
4 T/cm2 |
|
Motor power |
8.9 kW |
|
Milling system |
One mill or two milling per requirements |
|
Equipment weight |
1200 kg |
|
Power Supply |
380V/3P/50Hz |
|
Note: can be customized |
|
