NJP Series Automatic Capsule Filling Machine

NJP automatic capsule filling machine, with intermittent rotation, hole disc metering and filling, stable and reliable operation, and can automatically complete various processes such as capsule sowing, capsule separation, filling, waste capsule removal, capsule locking and finished product output. Fully enclosed ten stations turret, with a single row of 6-hole modules, is an ideal hard capsule filling equipment for pharmaceutical, health products and other industries.
1

The NJP-1200 series capsule filling machine, independently designed and produced by ChinaCanaan, has undergone multiple improvements and innovations by incorporating advanced foreign technology. It is the preferred equipment for hospitals and small to medium-sized pharmaceutical companies, replacing the previously used semi-automatic capsule filling machines.

The entire machine uses an intermittent rotary mechanism and a tamping method for quantitative filling. It is suitable for filling powder and granules into capsules ranging from size 00# to 5#. Optional auxiliary equipment, such as an automatic capsule feeder, vacuum feeder, metal detector, polisher, and elevator, can also be added.

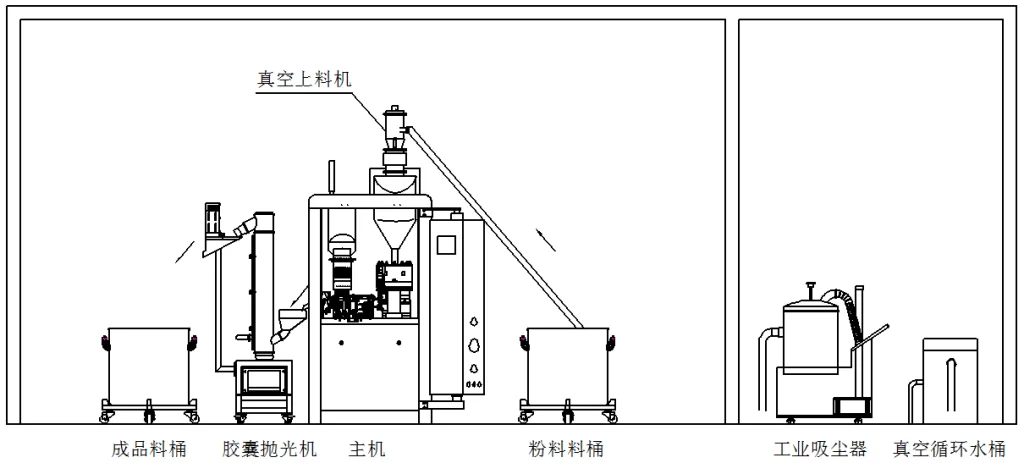

Structure of the Canaan's NJP-1200 Series Capsule Filling Machine
Output 1200Capsules/min
No.of segment bores9
Suitable for capsule00#-5#
Total power5.6Kw
Overall weight1100Kgs
Overall diemensions870(+339)mm*940(+339)mm*2000mm
Dust20Kpa   210m3/h
Noise<80DB(A)
Vacuum48m3/h, -0.03—0.05Mpa
Filling error±2.5%—±3.5%

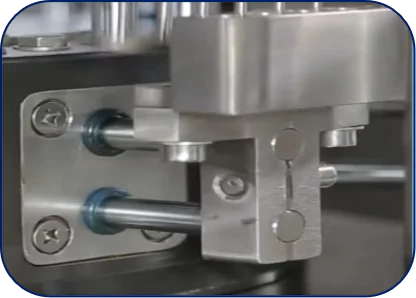

The upper mold operates in a circular up-and-down motion using dual shafts, while the lower mold operates in a circular in-and-out motion, also using dual shafts. Both are fitted with imported silicone sealing rings, which reduce powder leakage caused by the back-and-forth movement of the shafts. The operation is smooth and highly precise.

The dual shafts of both the upper and lower molds are secured with pressure caps, making assembly and disassembly easy and convenient for cleaning. Replacing the sealing rings does not require opening the turntable.

This design solves the issue of complex mold installation and removal, reduces employee labor intensity, and extends the service life of the workstation turntable.

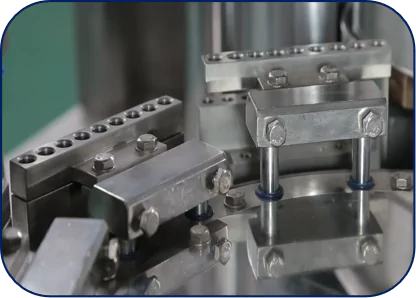

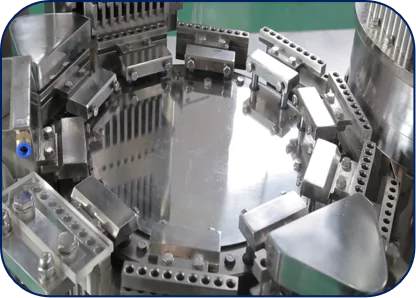

capsule filling machine - Enclosed workstation turntable
capsule filling machine - Enclosed workstation turntable
capsule filling machine - Enclosed workstation turntable

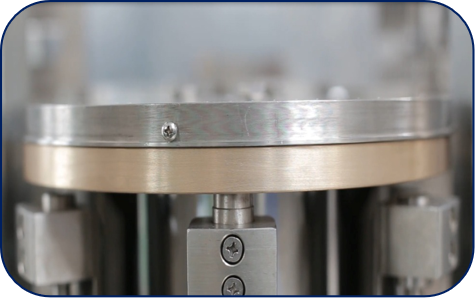

The natural deformation of the measuring plate and copper ring has been eliminated, ensuring uniform gaps and reducing powder leakage. The assembly and disassembly are straightforward, making cleaning easy. This guarantees device consistency.

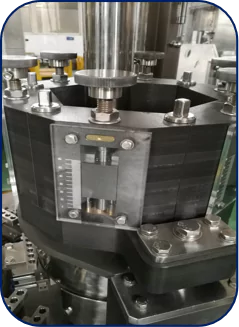

Capsule filling machine - Three-dimensional adjustment mechanism
Capsule filling machine - Three-dimensional adjustment mechanism

NJP-1200 series capsule filling machine is easy to assemble and disassemble, facilitating cleaning

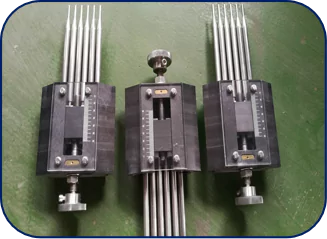

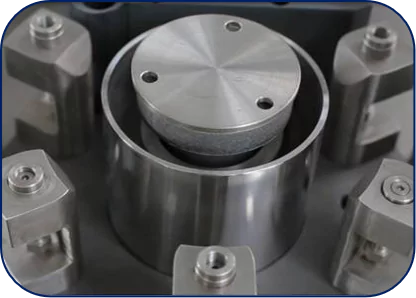

Capsule filling machine - Modular powder filling mechanism
Capsule filling machine - Modular powder filling mechanism

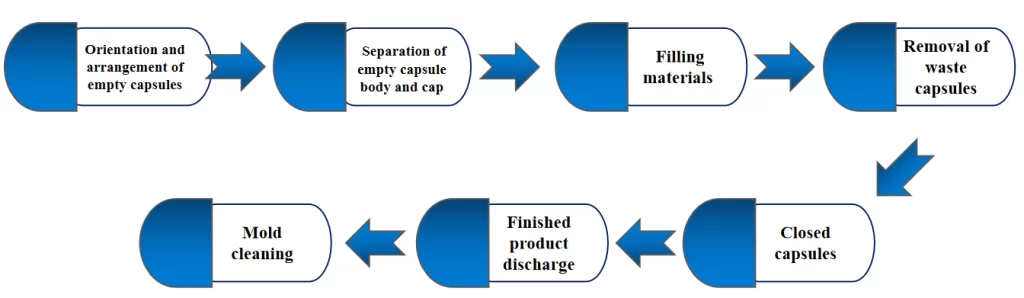

Working Principle of the Capsule filling machine

Automatic capsule-filling machine from Canaan
Automatic capsule-filling machine from Canaan
Model Capacity (Capsules/min.) Station No. Suitable capsules Total power (Kw)
NJP-400C/D 400 3 00#-5# 4
NJP-800C/D 800 6 00#-5# 4.5
NJP-1200C/D 1200 9 00#-5# 5.6
NJP-2500C/D 2500 18 00#-5# 8.5
NJP-3500C/D 3500 25 00#-5# 10.5
NJP-5000C/D 5000 36 00#-5# 15
NJP-7500C/D 7500 54 00#-5# 18.5
