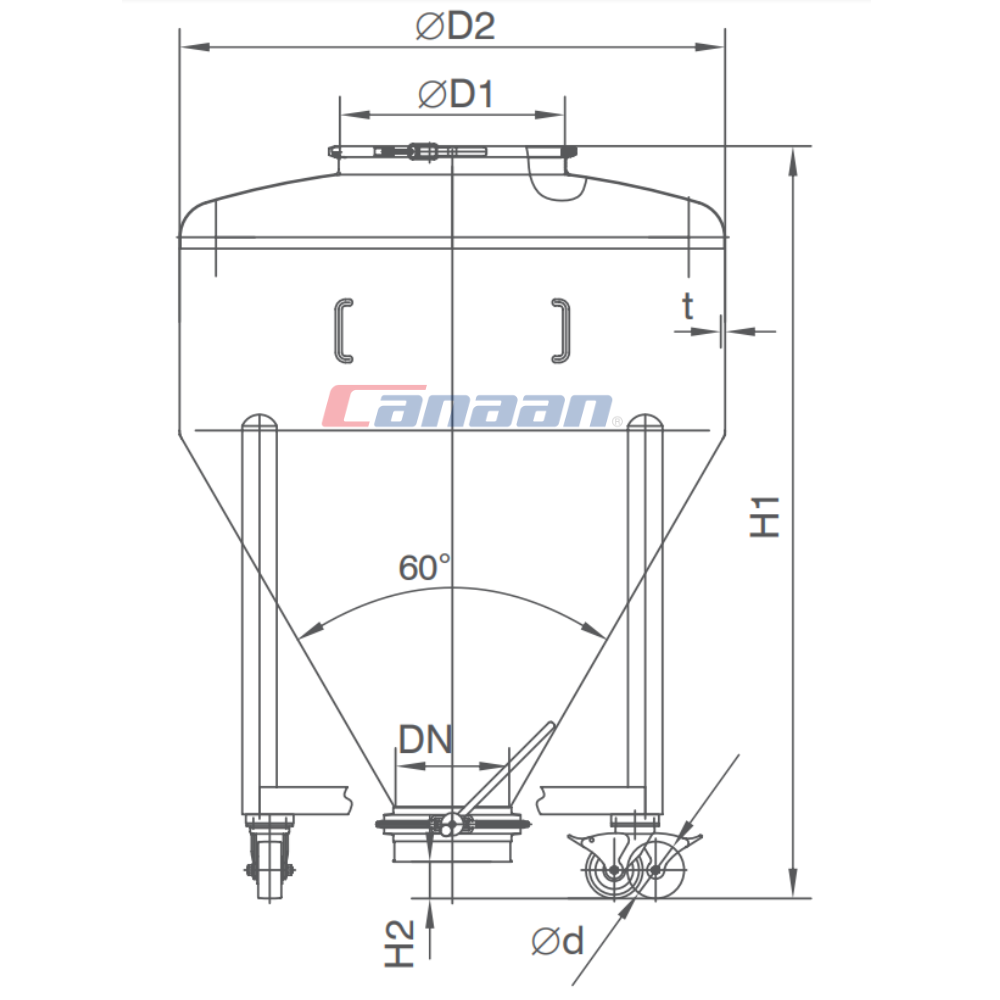

| Model | H1 mm | H2 mm | φD1 mm | φD2 mm | φd mm | DN | Volume L | Thickness T |
| LDC100 | 900 | 180 | 400 | 650 | 100 | 150 | 100 | 2 |
| LDC150 | 992 | 167 | 400 | 750 | 100 | 200 | 150 | 2 |
| LDC200 | 1104 | 167 | 400 | 750 | 100 | 200 | 200 | 2 |
| LDC300 | 1106 | 87 | 400 | 900 | 125 | 200 | 300 | 2.5 |
| LDC400 | 1261 | 87 | 400 | 900 | 125 | 200 | 400 | 2.5 |
| LDC500 | 1416 | 87 | 400 | 900 | 125 | 200 | 500 | 2.5 |
| LDC600 | 1468 | 231 | 500 | 1200 | 125 | 250 | 600 | 2.5 |
| LDC800 | 1654 | 231 | 500 | 1200 | 125 | 250 | 800 | 2.5 |
| LDC1000 | 1654 | 81 | 500 | 1200 | 125 | 250 | 1000 | 2.5 |
